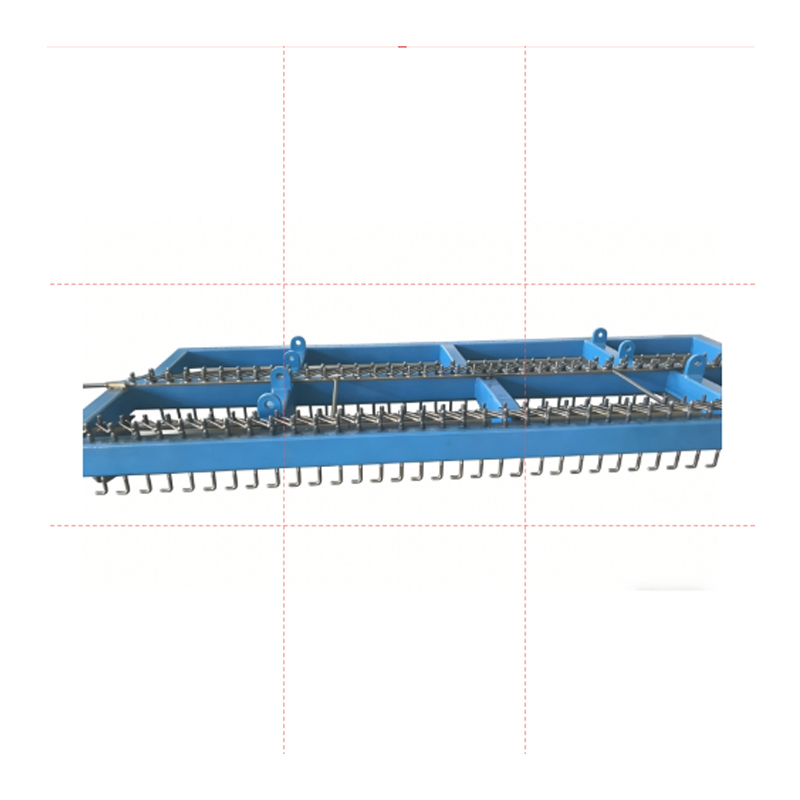

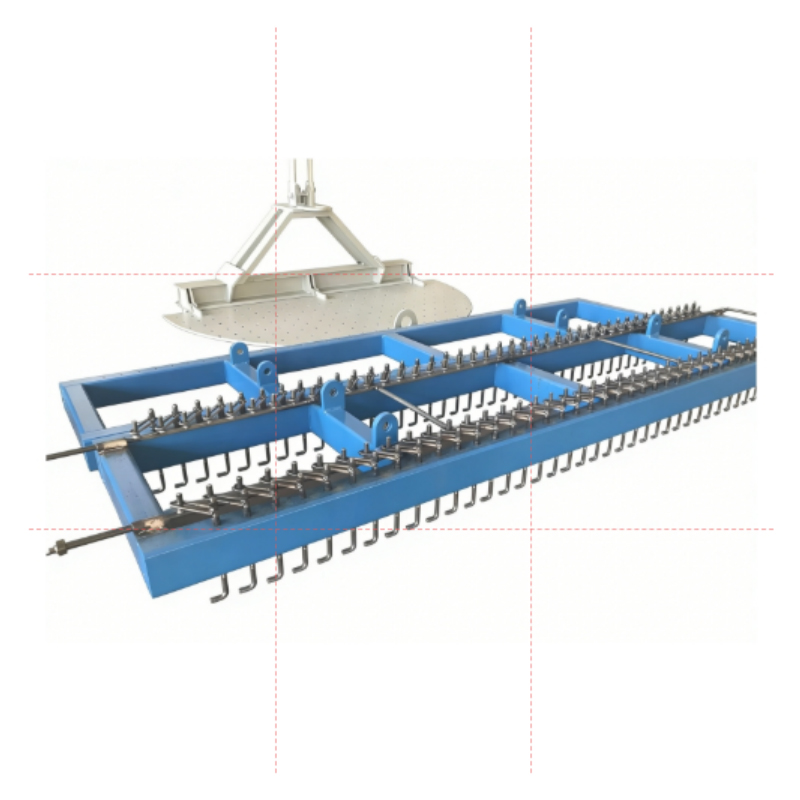

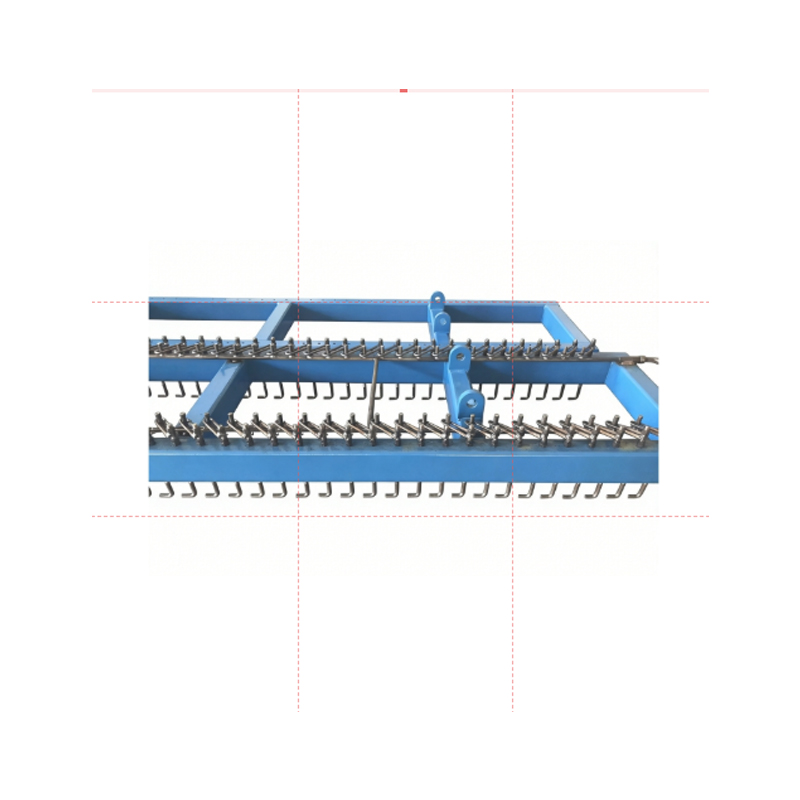

Lifting Rack For Electrolytic Cathode Plate Handling In Metallurgical Electrolysis Plant

Product Overview

Lifting Rack is key handling equipment for non ferrous metal electrolysis refining industry. Lifting Rack mainly hoists cathode plates out of electrolytic cell for washing and stripping operation. Lifting Rack distributes lifting force evenly across multiple hook points to keep cathode plates balanced during lifting. Lifting Rack maintains reliable structural strength under repeated full load lifting working condition. Lifting Rack can cooperate with overhead crane electrolytic cell and cathode washing station to form complete cathode plate handling process. Lifting Rack gains wide application in copper electrolysis and non ferrous metal electrowinning workshops.

Technical Parameters

Frame length: Customized according to electrolytic cell width

Lifting points: Evenly distributed hooks for multi cathode plate hoisting

Frame material: High strength steel with anti corrosion paint

Lifting capacity: Customized according to total cathode plate weight

Connection mode: Top lifting eye fit for overhead crane hook

Main Features

1. High strength welded frame of Lifting Rack adapts repeated full load hoisting working condition.

2. Evenly distributed hook points of Lifting Rack keep multiple cathode plates balanced during lifting.

3. Anti corrosion painted surface of Lifting Rack resists acid mist in electrolysis workshop.

4. Reinforced cross beam structure of Lifting Rack prevents frame bending under heavy load.

5. Customized frame length and hook quantity of Lifting Rack match different electrolytic cell dimensions.

Application Range

Lifting Rack applies in copper electrolysis refining plants and non ferrous metal electrowinning workshops. Lifting Rack handles simultaneous hoisting of cathode plates from multiple electrolytic cells. Lifting Rack can match with overhead crane electrolytic cell and cathode stripping machine to form complete cathode production process. Lifting Rack helps electrolysis plants reduce manual handling and improve cathode plate collection efficiency.

Our Company

We are professional manufacturer of metallurgical machinery. We own 8 patents and rich export experience. We can customize Lifting Rack and other metallurgical equipment according to customer technical requirements. All products pass strict factory inspection before shipment. We provide reliable technical support and after sales service of Lifting Rack for global customers."
